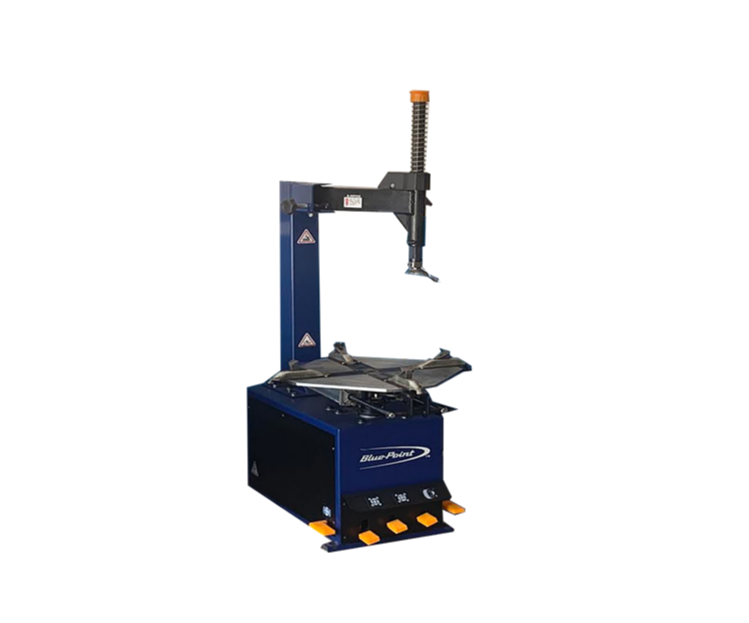

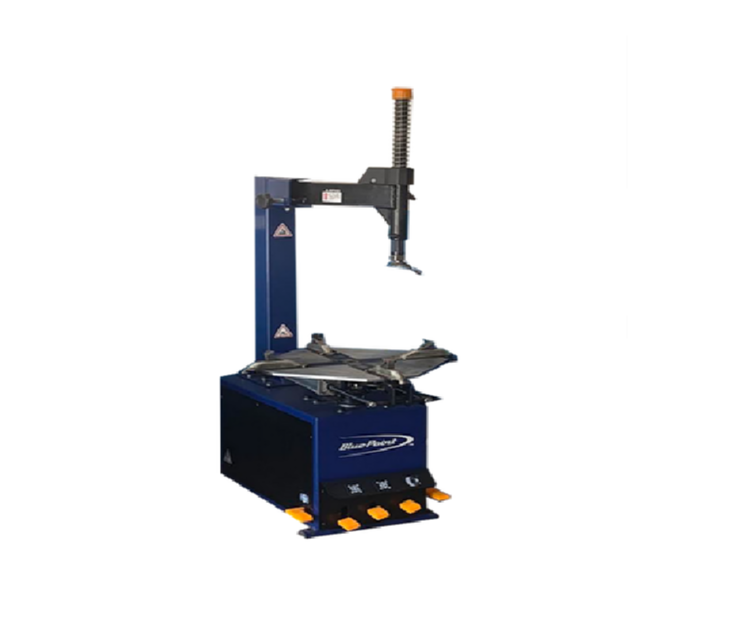

Blue-Point MTC100 Standard Tyre Changing Machine
The Blue-Point MTC100 Standard Tyre Changing Machine, available from SS Equipment Solutions, is designed for professional tyre mounting and removal work.
Its swing-arm construction supports convenient operation with different rim and wheel sizes. The machine provides 10-inch internal clamping and 24-inch external clamping capacity.
The turntable operates at 6.5 RPM, while its bead-breaking mechanism delivers a force of 10 kN. The machine supports wheels up to 1000 mm in diameter and tyres up to 13 inches wide.
Specifications
| Specification | Details |
|---|---|
| Brand | Blue-Point |
| Model Name/Number | BLP-MTC-100TC |
| Product Type | Standard Tyre Changing Machine |
| Machine Type | Swing Arm |
| Operating Pressure | 10 Bar |
| Turntable Rotation Speed | 6.5 RPM |
| Internal Rim Clamping | 10 Inches |
| External Rim Clamping | 24 Inches |
| Maximum Wheel Diameter | 1000 mm |
| Maximum Tyre Width | 13 Inches |
| Bead-Breaking Force | 10 kN |
| Dimensions (L × W × H) | 1040 × 1550 × 1770 mm |
| Weight | 200 kg |
| Condition | New Only |
