Description

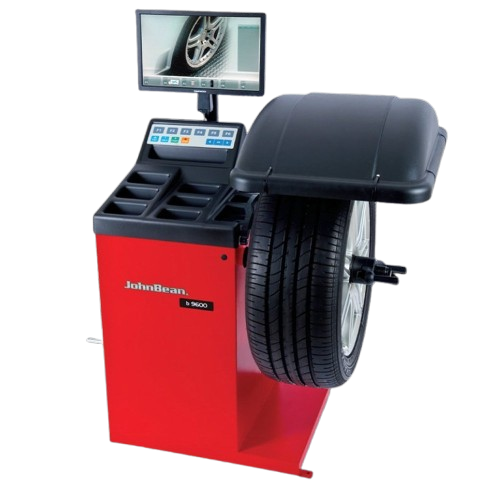

John Bean B9600 Automatic Wheel Balancer
The B9600 Wheel Balancer is a professional wheel balancing machine designed for accurate and efficient wheel service operations. With 3g balancing accuracy, a 200 RPM measuring speed, and a fast 6–10 second measuring cycle, it provides reliable performance for automobile workshops and tyre service centers. It supports rim diameters from 12–22 inches and wheels up to 65 kg.
Specifications
| Specification | Details |
|---|---|
| Model | B9600 |
| Accuracy | 3g |
| Measuring Speed | 200 RPM |
| Measuring Time | 6–10 seconds |
| Rim Width | Dynamic: 1–16 inch (3–16 inch) |
| Maximum Wheel Width | 500 mm (400 mm with wheel guard) |
| Rim Diameter | 12–22 inch |
| Maximum Wheel Diameter | 1,016 mm (880 mm with wheel guard) |
| Data Entry | 2D SAPE |
| Maximum Wheel Weight | 65 kg |
| Power Supply | 230V, 1Ph, 50Hz |
