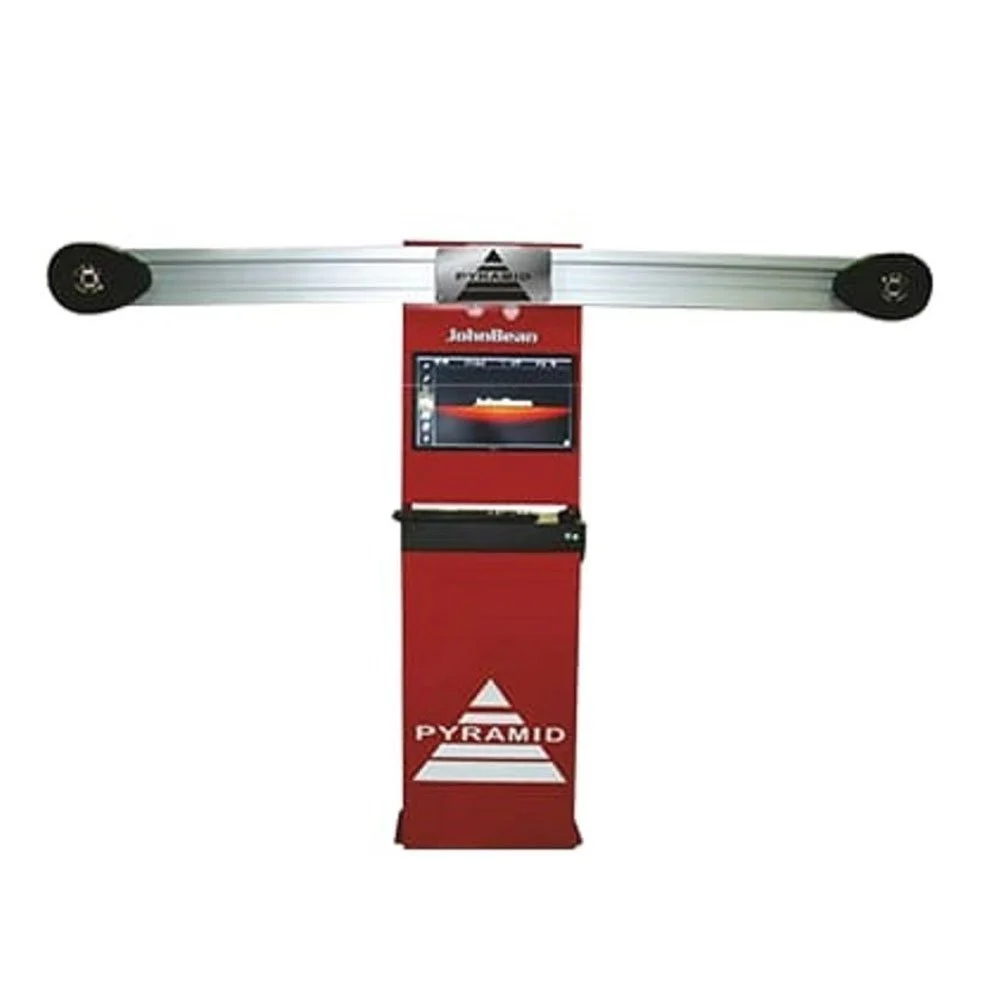

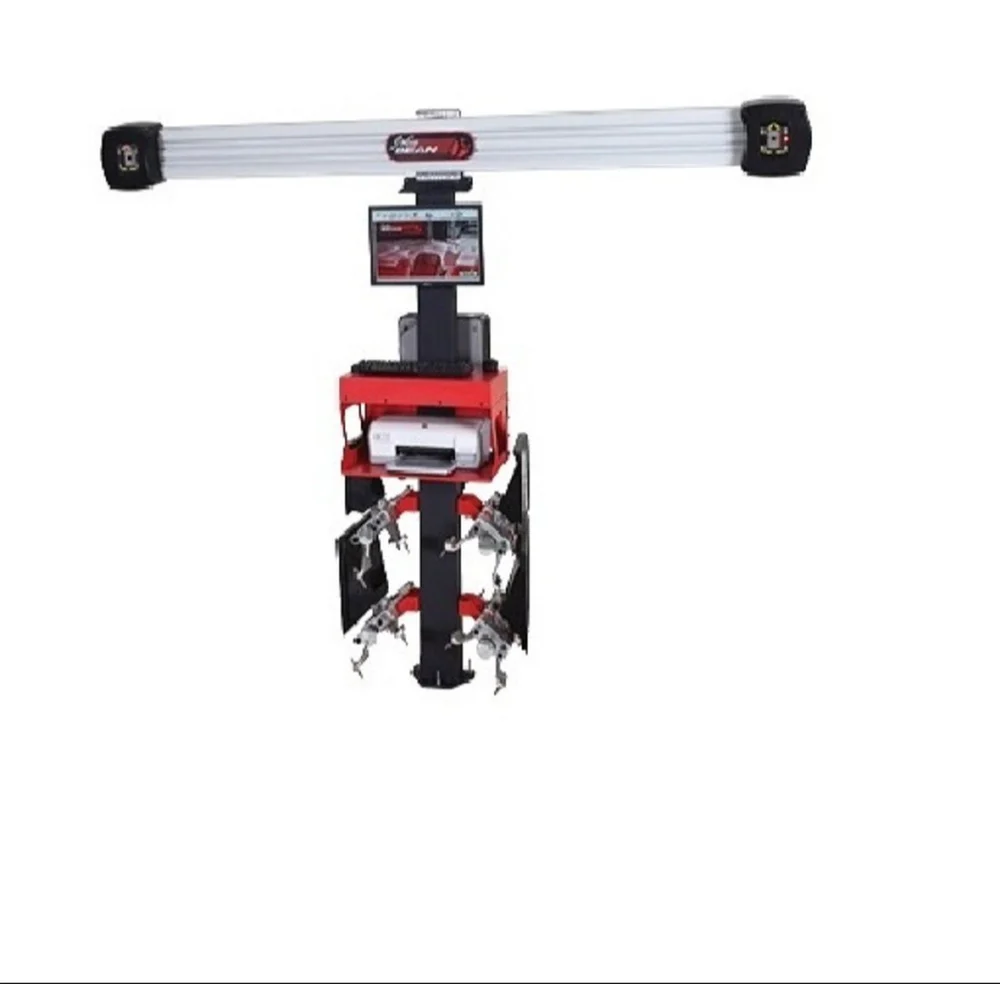

John Bean Pyramid 3D Car Wheel Aligner
The 3D Wheel Alignment Machine uses true 3D vehicle spindle modeling to provide accurate wheel alignment measurements. Its fixed camera beam configuration and dual-camera system are designed for professional alignment applications, including pit and wheel alignment scissor lifts. The system supports a wide range of vehicles and provides precise measurement of toe, camber, caster, and SAI.
Specifications
| Specification | Details |
|---|---|
| Measurement System | True 3D modeling of vehicle spindle plane |
| Camera Support Configuration | Fixed camera beam |

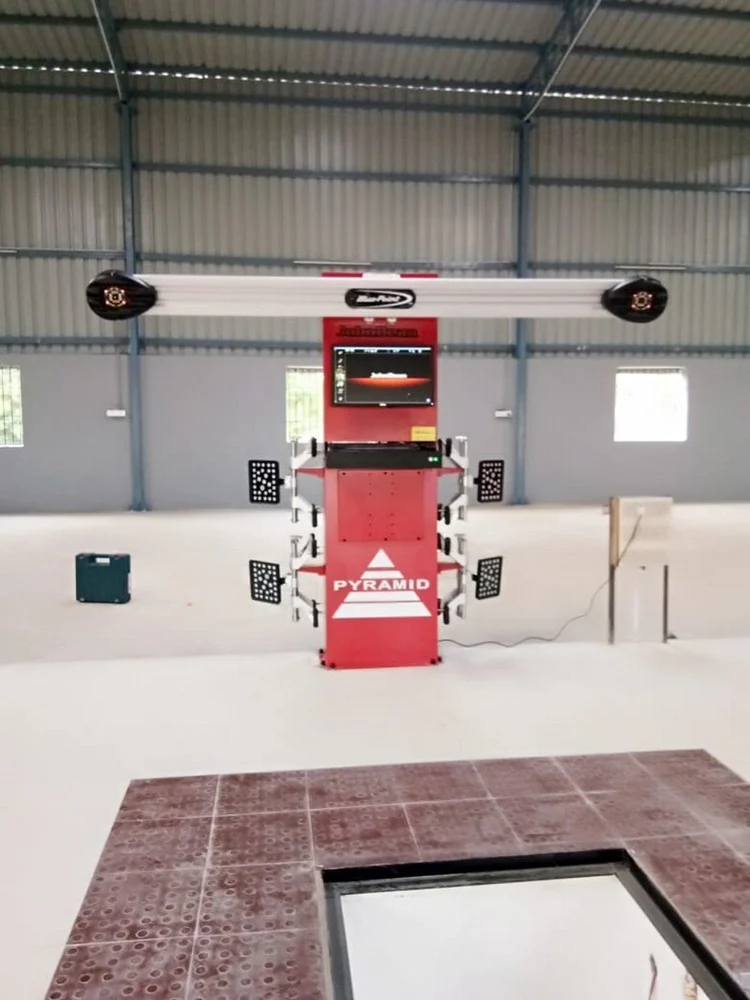

| Installation Configuration | Suitable for Pit & Wheel Alignment Scissors Lift |
| Wheel Clamp Range | AC100 Tyre Clamp, 11–22 inch |
| Track Width | 48–96 inch |
| Wheel Base | 79–180 inch |
| Individual Toe | ±35° |
| Camber | ±55° |
| Caster & SAI | ±30° |
| Toe-Out on Turns | Yes |
| Hardware | 2 × HD Cameras with Embedded Integrated PC |
| Software | Customized Alignment Software, Pro 42, Windows-Based |
